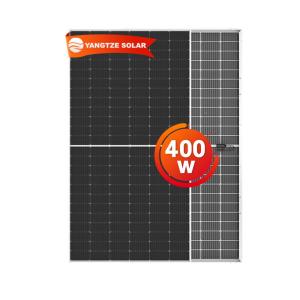

Bifacial Solar Cell Module Rooftop Solar PV Panel 400W

Product Categories
Yangtze Solar Power Co., Ltd.
Contact Now

Bifacial Solar Cell Module Rooftop Solar PV Panel 400W

  • 1
  • 2

Brand Name : Yangtze

Model Number : YS400M-120

Certification : CE/TUV/ISO/ROHS/INMETRO

Place of Origin : China

MOQ : 30 pieces

Price : negotiable

Payment Terms : L/C, T/T, Western Union,Credit Card

Supply Ability : 20000 pieces/Week

Delivery Time : 7-20 days

Packaging Details : Pallet+Carton Box

Frame : Anodized Aluminium Alloy

Junction Box : IP68 Rated

Solar cell : Half Cell 9BB

Glass : 3.2mm High Transmission Low Iron Tempered Glass

Backing Color : White or Black or Transparent

OEM Order : Acceptable

Class : Grade A

Rated Power : 400W

Dimension : 1755*1038*35mm

Efficiency : 21.98%

Contact Now

400W Bifacial Solar Panel 120cells 166mm 0.55% Annual Degradation Over 25 years

Bifacial Solar Cell Module Rooftop Solar PV Panel 400W



Model Type
YS380M-120
YS385M-120
YS390M-120
YS395M-120
YS400M-120
Rated Maximum Power at STC
380W
385W
390W
395W
400W
Maximum Power Voltage (Vmp)
34.65V
34.69V
34.73V
34.77V
34.82V
Maximum Power Current (Imp)
10.97A
11.09A
11.23A
11.39A
11.49A
Open Circuit Voltage ( Voc)
41.01V
41.16V
41.31V
41.46V
41.60V
Short Circuit Current (Isc)
11.53A
11.63A
11.73A
11.83A
11.93A
Module Efficiency
20.92%
21.19%
21.47%
21.75%
21.98%
Working Conditions&Working Conditions
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S

Bifacial Solar Cell Module Rooftop Solar PV Panel 400WBifacial Solar Cell Module Rooftop Solar PV Panel 400W
